Android push notifications

Obtaining configuration file for firebase push notifications

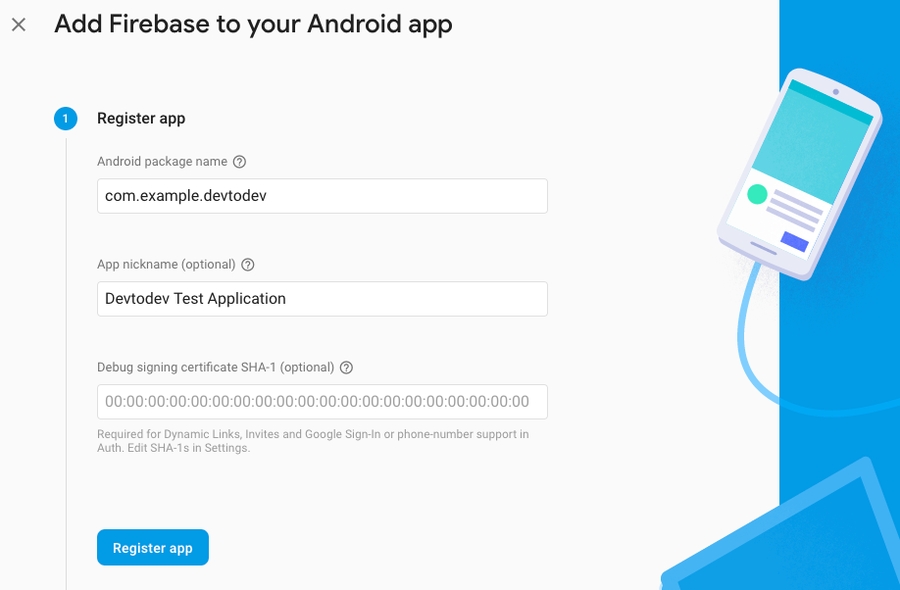

Go to Firebase console and then to your project or create a new one.

Current project:

New project:

Save the google-services.json file and add it to your app so that it is placed inside the Assets folder in a ready .apk file. If you use Flash Builder IDE simply copy it in the root folder, Flash Builder will do the rest for you.

Implementation to app

1. Update Adobe Air SDK. Pay attention that version of the Adobe Air SDK should be at least 22.0, otherwise FCM classes will not be imported into your project. However, you still can use Analytics, but application will not be able to accept Push Notifications.

2. Add dependencies to your project. These libraries are located in the same archive with com.devtodev.SDK.ane extension in the dependencies folder. These extensions contain firebase, gps и android-support libraries Java, that are used for sending Push Notifications. If you have already imported firebase-auth, firebase-common, firebase-iid, firebase-messaging, play-services-auth, play-services-base, play-services-basement, support-v4 or they are included in other extensions, you don't need to import them again. In any case, we recommend to use data from the library of a version not lower than 25. Add the following to the manifest file of your app:

   Copy

   <application>
       <extensions>
           <extensionID>com.devtodev.air.extensions.gps-auth</extensionID>
           <extensionID>com.devtodev.air.extensions.gps-base</extensionID>
           <extensionID>com.devtodev.air.extensions.gps-basement</extensionID>
           <extensionID>com.devtodev.air.extensions.supportv4</extensionID>
           <extensionID>com.devtodev.air.extensions.firebase-auth</extensionID>
           <extensionID>com.devtodev.air.extensions.firebase-common</extensionID>
           <extensionID>com.devtodev.air.extensions.firebase-iid</extensionID>
           <extensionID>com.devtodev.air.extensions.firebase-messaging</extensionID>
           <!-- this library should be already added for analytics -->
           <extensionID>com.devtodev.SDK</extensionID>
           ...
       </extensions>
   </application>

3. Add the following to your application's manifest:

   Copy

   <!--Replace 'com.example.application' to your package -->
   <manifest package="com.example.application" ...>
       <uses-permission android:name="com.google.android.c2dm.permission.RECEIVE" />
       <permission android:name="com.example.gcm.permission.C2D_MESSAGE" android:protectionLevel="signature" />
       <uses-permission android:name="com.example.gcm.permission.C2D_MESSAGE" />
   	<application>
   		<meta-data android:name="com.google.android.gms.version" android:value="@integer/google_play_services_version" />

           <receiver android:name="com.google.firebase.iid.FirebaseInstanceIdReceiver" android:exported="true" android:permission="com.google.android.c2dm.permission.SEND" >
               <intent-filter>
                   <action android:name="com.google.android.c2dm.intent.RECEIVE" />
                   <action android:name="com.google.android.c2dm.intent.REGISTRATION" />
                   <category android:name="com.example.application" />
               </intent-filter>
           </receiver>

           <service android:name="com.devtodev.push.logic.DTDFcmMessagingService" android:exported="false">
               <intent-filter>
                   <action android:name="com.google.firebase.MESSAGING_EVENT"/>
               </intent-filter>
           </service>

           <service android:name="com.devtodev.push.logic.DTDFcmInstanceIdService" android:exported="false">
               <intent-filter>
                   <action android:name="com.google.firebase.INSTANCE_ID_EVENT"/>
               </intent-filter>
           </service>

   		<receiver android:name="com.devtodev.push.logic.PushClickReceiver" android:enabled="true" android:exported="true">
   		    <intent-filter>
   			    <action android:name="com.devtodev.android.push.CLICKED" />
   			</intent-filter>
   		</receiver>

   		<activity android:name="com.devtodev.push.logic.PushHandlerActivity"/>
   	</application>
   </manifest>

4. Add the following imports to your source:

   Copy

   import com.devtodev.sdk.push.DevToDevPushManager;
   import com.devtodev.sdk.push.logic.ActionButton;
   import com.devtodev.sdk.push.logic.PushMessage;

5. Add the push notifications initialization before the DevToDev.init(appKey:String, appSecret:String) method was called:

   Copy

   DevToDevPushManager.setOnFailedToRegisteredForPushNotifications(onPushTokenFailed);
   DevToDevPushManager.setOnRegisteredForPushNotifications(onPushToken);
   DevToDevPushManager.setOnPushNotificationsReceived(onPushReceived);
   DevToDevPushManager.setOnPushNotificationOpened(onPushOpened);
   DevToDevPushManager.setPushNotificationsEnabled(true);

   onPushToken, onPushTokenFailed, onPushReceived and onPushOpened are the functions that take following arguments:

   Copy

   /**
   * @param token - push token
   */
   protected function onPushToken(param:String):void {
   }

   /**
   * @param error - error message
   */
   protected function onPushTokenFailed(param:String):void {
   }

   /**
   * @param pushData - Dictionary with push message and custom push fields
   */
   protected function onPushReceived(pushData:Dictionary):void {
   }

   /**
   * @param message - PushMessage. Represents toast notification message
   * @param button - ActionButton. Represents toast notification button that was clicked. Could be null if notification body was clicked
   */
   protected function onPushOpened(message:PushMessage, button:ActionButton):void {
   }

Changing the application settings in devtodev system

1. Proceed to Setting -> PUSH NOTIFICATIONS:

2. Insert the previously received Server API Key to the API Key field in Push notifications section.

3. If the Server API Key is correct, you will see the following result

Creating a new push-notification in devtodev interface

1. Open PUSH NOTIFICATIONS section and click on 'Add new campaign' button

2. Fill in campaign name, select an app for delivery

3. Choose user group to send a message. You can choose existing segment or create a new one.

4. Enter notification details

5. Make some tests and correct the message if it's required

6. Schedule the delivery

7. That's it!

iOS push-notifications

To enable Push Notifications, please perform the following actions:

1. Add the application to your space in devtodev system

2. Generate Developer or Production Certificate for the application and get Private key file (.p12) on its basis

3. Submit the data to the application settings in devtodev system

4. Integrate devtodev SDK to the application (see the “SDK integration” division to learn more about integrating and initializing devtodev SDK)

5. Add several lines of the code to switch in the push notification to the SDK

6. Create a campaign for sending push notifications in “Push” section

Certificate generation

5. At first, you need to generate Certificate Signing Request. We have already done it, so you can just click "Continue".

6. At next step you need to upload the CSR to the Apple server. Choose the CSR-file and click "Generate".

8. You'll need to repeat this process to generate the Production Certificate when your app will be ready for release. All steps are the same.

Convert iPhone developer certificate into a P12 file on Mac OS

Follow these steps to export the certificate from Apple web-site to the P12-file:

1. Open "Keychain access" application

2. If the certificate hasn't been added to keychain access yet, choose "File" → "Import". Find the certificate file (CER-file) provided by Apple

3. Choose "Keys" section in "Keychain access" application

4. Choose personal key associated with your iPhone developer certificate. Personal key is identified by open certificate associated with it "iPhone developer: ". Choose "File" → Export objects. Save key as .p12

5. You'll be suggested to create a password which is used when you need to import the key to another computer.

Convert iPhone developer certificate into a P12 file on Windows OS

Convert Apple certificate file to the PEM-file. Start the following command-line operation from bin catalog OpenSSL.

openssl x509 -in developer_identity.cer -inform DER -out developer_identity.pem -outform PEM

Convert personal key from Mac OS keychain to the PEM-key:

openssl pkcs12 -nocerts -in mykey.p12 -out mykey.pem

Now you are able to create P12-file using PEM-key and iPhone developer certificate:

openssl pkcs12 -export -inkey mykey.key -in developer_identity.pem -out iphone_dev.p12

If you are using key from Mac OS keychain than choose PEM-version created at previous step.

Otherwise you can use OpenSSL key for Windows OS.

Upload the certificate to the site

Upload the .p12-file into Integration section of application settings panel (Settings -> PUSH NOTIFICATIONS):

After the certificates has been generated you can start to integrate Push SDK into you app.

SDK Integration

1. Add the following to your application's manifest. Don't forget that the minimum supported version is iOS 7:

   Copy

   <iPhone>
         <InfoAdditions><![CDATA[
            <key>MinimumOSVersion</key>
            <string>7.0</string>
   		 <key>UIDeviceFamily</key>
   		 <array>
   		    <string>1</string>
   			<string>2</string>
   		 </array>
            ...
   	 ]]></InfoAdditions>

        <Entitlements>
    	    <![CDATA[
           	<key>aps-environment</key>
            	<string>development</string>
           ]]>
        </Entitlements>
   </iPhone>

   Attention! If you use Production Certificate for signing application package, don't forget to change "development" value to "production".

2. Add the following imports to your source:

   Copy

   import com.devtodev.sdk.push.DevToDevPushManager;
   import com.devtodev.sdk.push.logic.ActionButton;
   import com.devtodev.sdk.push.logic.PushMessage;

3. Add the push notifications initialization before the DevToDev.init(appKey:String, appSecret:String) method was called:

   Copy

   DevToDevPushManager.setOnFailedToRegisteredForPushNotifications(onPushTokenFailed);
   DevToDevPushManager.setOnRegisteredForPushNotifications(onPushToken);
   DevToDevPushManager.setOnPushNotificationsReceived(onPushReceived);
   DevToDevPushManager.setOnPushNotificationOpened(onPushOpened);
   DevToDevPushManager.setPushNotificationsEnabled(true);

   onPushToken, onPushTokenFailed, onPushReceived and onPushOpened are the functions that take following arguments:

   Copy

   /**
   * @param token - push token
   */
   protected function onPushToken(param:String):void {
   }

   /**
   * @param error - error message
   */
   protected function onPushTokenFailed(param:String):void {
   }

   /**
   * @param pushData - Dictionary with push message and custom push fields
   */
   protected function onPushReceived(pushData:Dictionary):void {
   }

   /**
   * @param message - PushMessage. Represents toast notification message
   * @param button - ActionButton. Represents toast notification button that was clicked. Could be null if notification body was clicked
   */
   protected function onPushOpened(message:PushMessage, button:ActionButton):void {
   }

4. Compile and run the app. You will need a device, because simulator does not support push notifications.

Xcode will automatically choose new provisioning profile. If an error occurred during the launch make sure that there is a correct profile set in the Code Signing Identity. You'll be asked to confirm push notifications. An app will request permission only once, if user confirm it - notifications will be accepted otherwise he wont get any push messages from your app. User can change it in device settings.

Creating a new push notification in devtodev interface

1. Open PUSH NOTIFICATIONS section and click on "Add new campaign" button.

2. Fill in campaign name

3. Choose user group to send a message. You can choose existing segment or create a new one.

4. Enter notification details

5. Test push notification (or skip this step)

6. Confirm push gateway

7. Schedule the delivery

8. That's it!

Push Notifications on Android are sent with the help of the FCM service. To work with it, two keys are required: a client and server key. If you have a project, move on to the second part of this article.

Creating a project in Firebase

Add a new project to the Firebase console.

Fill in the name and country of your project.

Congratulations, the project has been created! Now you need to indicate the package name of your Android app.

Obtaining the necessary keys

Go to the settings of your Android project.

Remember or copy Server key and Sender ID from the Cloud Messaging tab. You will need them to integrate push notifications and create push campaigns.

Implementation in the app

Download the generated by google-service.json file and add it to the project.

The Google services plugin for Gradle loads the google-services.json file that you just downloaded. Modify your build.gradle files to use the plugin.

1. Project-level build.gradle (<project>/build.gradle):

   Copy

   buildscript {
     dependencies {
       // Add this line
       classpath 'com.google.gms:google-services:4.3.3'
     }
   }

2. App-level build.gradle (<project>/<app-module>/build.gradle):

   Copy

   dependencies {
      ...
      implementation 'com.devtodev:android:1.14.5'
      implementation 'com.google.android.gms:play-services-base:17.1.0'
      implementation 'com.google.firebase:firebase-core:17.2.3'
      implementation 'com.google.firebase:firebase-messaging:20.1.0'
   }
   // Add to the bottom of the file
   apply plugin: 'com.google.gms.google-services'

4. In Activity (where the SDK initializes) add the push notifications initialization and the listener of push notifications processing.

   Copy

   public class MainActivity extends AppCompatActivity implements PushListener {

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_main);

           DevToDevPushManager.setPushListener(this);
           DevToDevPushManager.init(getIntent());
       }

       @Override
       public void onRegisteredForPushNotifications(String s) {
           // Insert the code for processing the received token

       }

       @Override
       public void onFailedToRegisteredForPushNotifications(String s) {
           // Insert the code for tracking integration errors
       }

       @Override
       public void onPushNotificationsReceived(Map<String, String> map) {
           // Insert the code to track received notifications
       }

       @Override
       public void onPushNotificationOpened(PushMessage pushMessage, @Nullable ActionButton actionButton) {
           // Insert the code to track opened notification
       }
   }

5. Optional. To set the custom icons to be shown in push-notification on the SDK part, use the following methods: To set the small icon:

   Copy

   DevToDevPushManager.setCustomSmallIcon(int resourceId);

   To set the default color of the small icon:

   Copy

   DevToDevPushManager.setCustomSmallIconColor(int colorHexadecimal)

   To set the large icon:

   Copy

   DevToDevPushManager.setCustomLargeIcon(int resourceId);

   Use resources of your app. For example, R.drawable.ic_launcherIcons which set in the push-notification wizard have priority over the icons which set in these methods.

DevToDevPushManager.displayPushNotification(Context context, RemoteMessage remoteMessage);

For example:

public class MyFirebaseMessagingService extends FirebaseMessagingService {
    @Override
    public void onMessageReceived(RemoteMessage remoteMessage) {
        Map<String, String> data = remoteMessage.getData();
        if (data != null) {
            if (data.containsKey("_k")) {
                DevToDevPushManager.displayPushNotification(this, remoteMessage);
            } else {
                showNotification(remoteMessage);
            }
        }
    }
}

Changing the application settings in devtodev system

1. Go to Firebase console and then to your project settings. On the Cloud messaging tab get the Firebase Cloud Messaging token of your project.

2. Proceed to Settings of your app in devtodev.

3. Go to Integration page and insert the previously received Firebase Cloud Messaging token to the FCM token field in Push notifications section.

4. If the Firebase Cloud Messaging token is correct, you will see the following result

Creating a new push notification in devtodev interface

1. Open PUSH NOTIFICATIONS section and click on 'Add new campaign" button

2. Fill in campaign name, select an app for delivery*

3. Choose user group to send a message. You can choose existing segment or create a new one

4. Enter notification details

5. Make some tests and correct the message if it's required

6. Schedule the delivery

7. That's it!

General information

To enable Push Notifications you will have to perform the following actions:

• Add the application to your space in devtodev system

• Activate Windows Messaging Service ang get SID and Client Secret values

• Add SID and Client Secret to the application integration settings in devtodev system

• Integrate devtodev SDK to the application (see the "SDK integration" section to learn more how to integrate and initialize devtodev SDK)

• Add several lines of the code to switch on the push notification in the SDK

• Create a campaign for sending push notifications in "Push" section

How to get SID and Client Secret

1. Go to the application settings in your Windows Store dashboard

2. Open Push Notifications submenu in Services menu

3. Go to Live Services site:

4. "Package SID" and "Client secret" will be your SID and Client Secret strings respectively

Implementation to app

1. Integrate devtodev SDK to your project. Even if you don't need devtodev analytics in your app, you should call DevToDev.SDK.Initialize(string appKey, string appSecret).

2. Add the following source after DevToDev.SDK.Initialize(string appKey, string appSecret) is called:

   Copy

   //It is called when push token is received successfully
   PushManager.PushTokenReceived = (pushToken) => {
      //pushToken - the string contains the push token
   };

   //It is called when there is an error in push token delivery.
   PushManager.PushTokenFailed = (error) => {
      //error - the error string. This function will be called when push token have not been obtained.
   };

   //It is called when push notification is received.
   PushManager.PushReceived = (PushType type, IDictionary<string, string> pushAdditionalData) => {
      //type - type of the push message
      //params - IDictionary<string, string> with the custom user parameters form the push message
   };

   //It is called when push notification is opened.
   PushManager.PushOpened = (PushMessage pushMessage, ActionButton actionButton) => {
      //pushMessage - DevToDev.PushMessage. Represents toast notification message
      //actionButton - DevToDev.ActionButton. Windows 10 only!
      //Represents toast button that was clicked. Could be null if toast body was clicked
   };

   DevToDev.PushManager.Initialize();

   The PushType can have one of the following values:

   Copy

   public enum PushType {
      ToastNotification, //Notification that can be seen by a user.
      SilentNotification //Raw-notification. A user can't see it.
   }

3. The control of the current value of a badge. When an app is launched the current value of a badge is reset to zero by default. In order to disable automatic resetting to zero and manually control the value of a badge use the following methods:

   Copy

   //Disables automatic clearing of a badge at start.
   //Must be called before DevToDev.PushManager.Initialize();
   DevToDev.PushManager.AutoClearBadgeOnStart = false;

   //Decreases the current value of a badge on "number" units.
   DevToDev.PushManager.DecreaseBadge(int number);

   //Clears the current value of a badge.
   DevToDev.PushManager.ClearBadgeCount();

4. Attention! There is a difference in the implementation of the elements mentioned below for Windows 8.1+ and Windows 10+ projects.

   Windows 8.1+: Put the following source in your Application class (usually it is App.xaml.cs file) at the end of the OnLaunched(LaunchActivatedEventArgs e) function. For Example:

   Copy

   protected override void OnLaunched(LaunchActivatedEventArgs e) {
      //...other source
      DevToDev.PushManager.HandleToastNavigation(e.Arguments);
   }

   Windows 10+: Put the following source in your Application class (usually it is App.xaml.cs file) at the end of the OnLaunched(LaunchActivatedEventArgs e) and OnActivated(IActivatedEventArgs args)​ functions. For Example:

   Copy

   protected override void OnLaunched(LaunchActivatedEventArgs e) {
      //...other source
      DevToDev.PushManager.HandleToastNavigation(e.Arguments);
   }

   protected override void OnActivated(IActivatedEventArgs args) {
      //...other source
      if (args.Kind == ActivationKind.ToastNotification) {
          var toastArgs = args as ToastNotificationActivatedEventArgs;
          DevToDev.PushManager.HandleToastNavigation(toastArgs.Argument);
      }
   }

Changing the application settings in devtodev system

1. Proceed to Settings of your app.

2. Go to PUSH NOTIFICATIONS page in Settings and insert the previously received Package SID and Client secret to appropriate fields in Push notifications section.

3. If the Package SID and Client secret are correct, you will see the following result:

Creating a new push notification in devtodev interface

1. Open PUSH NOTIFICATION section and click on "Add new campaign" button

2. Fill in campaign name, select an app for delivery*

3. Choose the user group to send a message. You can choose existing segment or create a new one

4. Enter toast or tile details

5. Schedule the delivery

6. That's it!

General information

To enable Push Notifications, please perform the following actions:

1. Add the application to your space in devtodev system

2. Generate Developer or Production Certificate for the application and get Private key file (.p12) on its basis

3. Submit the data to the application settings in devtodev system

4. Integrate devtodev SDK to the application (see the “SDK integration” division to learn more about integrating and initializing devtodev SDK)

5. Add several lines of the code to switch in the push notification to the SDK

6. Create a campaign for sending push notifications in “Push Notifications” section

Enabling Push Notifications and certificate generation

Enabling Push Notifications

First enable push notifications in your Xcode project.

The library provides support for iOS 10 notification attachments, such as images, animated gifs, and video. In order to take advantage of this functionality, you will need to create a notification service extension alongside your main application.

Create a new iOS target in Xcode (File -> New -> Target) and select the Notification Service Extension type.

​In Member Center, the Push Notifications service will appear as Configurable (not Enabled) until you create a client SSL certificate.

Drag the devtodevAppExtensions.framework into your app project.

Modify your extension.

1. Delete all dummy source code for your new extension

2. Inherit from DTDMediaAttachmentExtension in NotificationService

//NotificationService.h
#import <devtodevAppExtensions/devtodevAppExtensions.h>

@interface NotificationService : DTDMediaAttachmentExtension

@end

//NotificationService.m
#import "NotificationService.h"

@implementation NotificationService
// NOTE: Keep this empty implementation to prevent class stripping.
@end

Adding Capabilities

Use Xcode to enable push notifications in the target’s Capabilities pane:

Enable Background Modes and Remote notifications under the target’s Capabilities section:

Creating a Universal Push Notification Client SSL Certificate

You use Member Center to generate a push notification client SSL certificate that allows your notification server to connect to the APNs. Each App ID is required to have its own client SSL certificate. The client SSL certificate Member Center generates is a universal certificate that allows your app to connect to both the development and production environments.

To generate a universal client SSL certificate

1. In Certificates, Identifiers & Profiles, select Certificates.

4. Choose an App ID from the App ID pop-up menu, and click Continue. Choose the explicit App ID that matches your bundle ID.

5. Follow the instructions on the next webpage to create a certificate request on your Mac, and click Continue.

6. Click Choose File.

8. Click Generate.

9. Click Download.

Follow these steps to export the certificate from Apple web-site to the P12-file:

1. Open "Keychain access" application

2. If the certificate hasn't been added to keychain access yet, choose "File" → "Import". Find the certificate file (CER-file) provided by Apple

3. Choose "Keys" section in "Keychain access" application

4. Choose a personal key associated with your iPhone developer certificate. Personal key is identified by open certificate associated with it "iPhone developer: ". Choose "File" → Export objects. Save key as .p12

5. You'll be suggested to create a password which is used when you need to import the key to another computer

Convert the certificate from Apple web-site to the P12-file on Windows OS

Convert Apple certificate file to the PEM-file. Start following command-line operation from bin catalog OpenSSL.

openssl x509 -in developer_identity.cer -inform DER -out developer_identity.pem -outform PEM

Convert personal key from Mac OS keychain to the PEM-key:

openssl pkcs12 -nocerts -in mykey.p12 -out mykey.pem

Now you are able to create P12-file using PEM-key and iPhone developer certificate:

openssl pkcs12 -export -inkey mykey.key -in developer_identity.pem -out iphone_dev.p12

If you are using key from Mac OS keychain then choose PEM-version created in the previous step. Otherwise, you can use OpenSSL key for Windows OS.

Upload the certificate to the site

Upload the .p12-file into Integration section of application settings panel (Settings -> Push Notifications):

SDK Integration

After the certificate has been generated you can start to integrate Push SDK into your app.

1. Open the "Capabilities" tab in the XCode. Switch "Push Notifications" and "Background Modes" to ON. In "Background Modes" check "Remote notifications".

2. Add the following strings to the AppDelegate class:

#import "AppDelegate.h"
#import <devtodev/devtodev.h>

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary
*)launchOptions {

   [DevToDev initWithKey:@“APP_KEY” andSecretKey:@“SECRET_KEY”];

    dispatch_async(dispatch_get_main_queue(), ^{
      [DevToDev pushManager].delegate = self;
      [DevToDev pushManager].pushNotificationsOptions = (DTDNotificationOptionAlert | DTDNotificationOptionBadge | DTDNotificationOptionSound);
      [DevToDev pushManager].pushNotificationsEnabled = YES;
    });

    // Your code...
    return YES;
}


/**
 * @brief Device received a token and was successfully subscribed for notifications
 * @param deviceToken device push token
 **/
-(void) didRegisterForRemoteNotificationsWithDeviceToken: (NSString *) deviceToken {

}

/**
 * @brief Error occured while registering for push notifications
 * @param error text
 **/
-(void) didFailToRegisterForRemoteNotificationsWithError: (NSError *) error {

}

/**
 * @brief Push notification has been received by the device
 * @param notification data
 **/
-(void) didReceiveRemoteNotification: (NSDictionary *) notification {

}

/**
 * @brief Push notification has been opened
 * @param pushMessage body
 * @param actionButton button that was clicked
 **/
-(void) didOpenRemoteNotification: (DTDPushMessage *) pushMessage withAction: (DTDActionButton *) actionButton {

}

/**
 * @brief Push notification receive response
 * Note: This method is relevant only for iOS 10 and above.
 * @param response notification
 **/
-(void) didReceiveNotificationResponse: (DTDNotificationResponse *)response {

}

If you are using iOS 12 or above, you can specify custom options for notification settings:

typedef NS_OPTIONS(NSUInteger, DTDNotificationOptions) {
    DTDNotificationOptionBadge   = (1 << 0),
    DTDNotificationOptionSound   = (1 << 1),
    DTDNotificationOptionAlert   = (1 << 2),
    DTDNotificationOptionCarPlay = (1 << 3),
    DTDNotificationOptionCriticalAlert = (1 << 4),
    DTDNotificationOptionProvidesAppNotificationSettings = (1 << 5),
    DTDNotificationOptionProvisional = (1 << 6)
};

3. Open "Build Settings", find the parameter "Other Linker Flags", then add 2 flags: -ObjC and -lc++

4. Compile and run the app. You will need a device because the simulator does not support push notifications. Xcode will automatically choose a new provisioning profile. If an error occurred during the launch make sure that there is a correct profile set in the Code Signing Identity. You'll be asked to confirm push notifications. An app will request permission only once, if user confirms it - notifications will be accepted otherwise he won't get any push messages from your app. Users can change it in device settings.

Creating a new push notification in devtodev interface

1. Open PUSH NOTIFICATIONS section and click on the "Add new campaign" button

2. Fill in the campaign name

3. Choose a user group to send a message. You can choose an existing segment or create a new one

4. Enter notification details

5. Test push notification (or skip this step)

6. Confirm push gateway

7. Schedule the delivery

8. That's it!

General information

To enable Push Notifications you will have to perform the following actions:

• Add the application to your space in devtodev system

• Android. Get API key from Google APIs Console. It is nessesary to activate Google Cloud Messaging for Android before key generation. Detailed information on how to receive an API key you can find in native Android devtodev SDK documentation

• iOS. Generate Developer or Production Certificate for the application and get Private key file (.p12) on its basis. Detailed information on how to receive a Private key file you can find in native iOS devtodev SDK documentation

• Submit the data to the application settings in devtodev system

• Integrate devtodev SDK to the application (see the "SDK integration" division to learn more about integrating and initializing devtodev SDK)

• Set Push Notification Enabled in blueprint.

• Create a campaign for sending push notifications in "Push" section

Project settings

Set Push Notification Enabled in blueprint.

Creating a new push notification in devtodev interface

2. Fill in campaign name, select an app for delivery*

3. Choose user group to send a message. You can choose existing segment or create a new one

4. Enter notification details

5. Schedule the delivery

6. That's it!

To enable Push Notifications you will have to perform the following actions:

• Add the application to your space in devtodev system

• Android. Get API key from Google APIs Console. It is necessary to activate Google Cloud Messaging for Android before key generation. Detailed information on how to receive an API key you can find in native Android devtodev SDK documentation

• iOS. Generate Developer or Production Certificate for the application and get Private key file (.p12) on its basis. Detailed information on how to receive a Private key file you can find in native iOS devtodev SDK documentation

• Submit the data to the application settings in devtodev system

• Integrate devtodev SDK to the application (see the "SDK integration" to learn more about integrating and initializing devtodev SDK)

• Add several lines of the code to switch in the push notification to the SDK

• Create a campaign for sending push-notifications in "Push" section

SDK Integration

Android platform features:

Go to Firebase console and then to your project or create a new one. Here is complete guide on adding your project to Firebase console and enabling Cloud messaging.

Download google-services.json from your Firebase console. Add this file into your project’s Assets folder.

Please do the following to find google-services.json:

1. Choose your project in the Firebase console

2. Choose project settings in the Project overview

3. Scroll down to the SDK setup and configuration. Click on the google-services.json

Using devtodev and Firebase Messaging services at the same time

If you want to use both devtodev and Firebase Messaging services at the same time, you need to disable Firebase listener.

• Find androidmanifest.xml used in your app. If you don’t use Custom Manifest, you need to create it. Tick the Custom Main Manifest checkbox:

  You can read more about the manifest here.

• Add the following line to the “Application” section:

<service android: name = "com.google.firebase.messaging.cpp.ListenerService"
android: exported = "true"
android: enabled = "false"
tools: node = "replace" />

• You should get something like this:

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" package="com.devtodev.unitysdk2" android:versionCode="1" android:versionName="1.0">
  <application android:label="@string/app_name" android:icon="@drawable/app_icon">
    <service android:name="com.google.firebase.messaging.cpp.ListenerService" android:exported="true" android:enabled="false" tools:node="replace" />
    <!-- The MessagingUnityPlayerActivity is a class that extends
         UnityPlayerActivity to work around a known issue when receiving
         notification data payloads in the background. -->
    <activity android:name="com.google.firebase.MessagingUnityPlayerActivity" android:configChanges="fontScale|keyboard|keyboardHidden|locale|mnc|mcc|navigation|orientation|screenLayout|screenSize|smallestScreenSize|uiMode|touchscreen">
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
      <meta-data android:name="unityplayer.UnityActivity" android:value="true" />
    </activity>
    <service android:name="com.google.firebase.messaging.MessageForwardingService" android:exported="true" />
  </application>
</manifest>

Windows Store 10 platform features:

Build a Windows Store App in Unity. After the app is built, Visual Studio project will be created. Proceed with the following changes.

.NET + D3D: Put the following source in your App class (usually it is an App.cs file) at the end of the ApplicationView_Activated(CoreApplicationView sender, IActivatedEventArgs args)​ function.

private void ApplicationView_Activated(CoreApplicationView sender, IActivatedEventArgs args) {
    //...other code
    DevToDev.ActivatedEventHandler.Handle(args);
}

.NET + XAML: Put the following source in your App class (usually it is an App.xaml.cs file) at the end of the OnLaunched(LaunchActivatedEventArgs args) and OnActivated(IActivatedEventArgs args) functions.

protected override void OnLaunched(LaunchActivatedEventArgs e) {
    //...other code
    DevToDev.ActivatedEventHandler.Handle(e);
}

protected override void OnActivated(IActivatedEventArgs args) {
    //...other source
    DevToDev.ActivatedEventHandler.Handle(args);
}

IL2CPP + XAML: Put the following source in your App class (usually it is App.xaml.cpp file). Add several lines of code in a generated App.xaml.cpp class. After defining headers:

//...headers
extern "C" __declspec(dllimport) void __stdcall AddActivatedEventArgs(IInspectable* activatedEventArgs);

And at the end of of the App::OnLaunched(LaunchActivatedEventArgs^ e) and App::OnActivated(IActivatedEventArgs^ args) functions.

For Example:

void App::OnActivated(IActivatedEventArgs^ args) {
    //...other code
    AddActivatedEventArgs(reinterpret_cast<IInspectable*>(static_cast<Platform::Object^>(args)));
}

void App::OnLaunched(LaunchActivatedEventArgs^ e) {
    //...other code
    auto args = static_cast<IActivatedEventArgs^>(e);
	AddActivatedEventArgs(reinterpret_cast<IInspectable*>(static_cast<Platform::Object^>(args)));
}

IL2CPP + D3D: Put the following source in your App class (usually it is App.cpp file). Add several lines of code in a generated App.cpp class. After defining headers:

//...headers
extern "C" __declspec(dllimport) void __stdcall AddActivatedEventArgs(IInspectable* activatedEventArgs);

And at the end of of the App::OnActivated(CoreApplicationView^ sender, IActivatedEventArgs^ args) function.

void App::OnActivated(CoreApplicationView^ sender, IActivatedEventArgs^ args) {
    //...other code
    AddActivatedEventArgs(reinterpret_cast<IInspectable*>(static_cast<Platform::Object^>(args)));
}

Make sure that these functions are enabled in Package.appmanifest of you project (the flag "Toast capable" is enabled by default for Windows 10+ projects, it is absent in the manifest).

Add the following three Background Tasks in Package.appmanifest:

Entry point for Push Notification tasks type:

devtodev.background.PushNotificationTriggerTask

Entry points for System Event tasks type:

devtodev.background.ToastNotificationActionTriggerTask
devtodev.background.ToastNotificationHistoryChangedTriggerTask

The specificity of integration on iOS platform

1. Build an iOS App in Unity. After the app is built, Xcode project will be created. Proceed with the following changes

2. Enable push notifications in your Xcode project

3. The library provides support for iOS 10 notification attachments, such as images, animated gifs, and video. In order to take advantage of this functionality, you will need to create a notification service extension alongside your main application

4. Create a new iOS target in Xcode (File -> New -> Target) and select the Notification Service Extension type

5. ​In Member Center, the Push Notifications service will appear as Configurable (not Enabled) until you create a client SSL certificate

Add devtodevAppExtensions.framework to newly created extension. Make sure that Deployment Target is pointed as iOS 10.0 or higher:

Make sure that field Architectures contains "Standard architectures armv7, arm64" setting both in the project and the extension build settings:

Modify your extension:

1. Delete all dummy source code for your new extension

2. Inherit from DTDMediaAttachmentExtension in NotificationService

//NotificationService.h
#import <devtodevAppExtensions/devtodevAppExtensions.h>

@interface NotificationService : DTDMediaAttachmentExtension

@end

//NotificationService.m
#import "NotificationService.h"

@interface NotificationService ()

@end

Adding Capabilities

Use Xcode to enable push notifications in the target’s Capabilities pane:

Enable Background Modes and Remote notifications under the target’s Capabilities section:

Two ways to integrate push notifications:

• Using the graphic interface:

  1. Open the Window/devtodev menu element

  2. Switch Push Notifications tumbler on

  3. If you need to use push token for some aims or to handle the getting of notifications by user, add the GameObject with the following function to the scene:

     Copy

     public void PushReceived(IDictionary<string, string> pushAdditionalData) {
          //pushAdditionalData - push-notification data that you send to your app
     }

     public void PushOpened(DevToDev.PushMessage pushMessage, DevToDev.ActionButton actionButton) {
          //pushMessage - DevToDev.PushMessage. Represents toast notification message
          //actionButton - DevToDev.ActionButton. Represents toast button that was clicked. Could be null if toast body was clicked
     }

     public void PushTokenFailed(string error) {
          //handle push-notifications error here
     }

     public void PushTokenReceived(string pushToken) {
          //pushToken - your push token
     }
• Using code: Before calling Analytics.Initialize add the following strings:

public void PushReceived(IDictionary<string, string> pushAdditionalData) {
     //pushAdditionalData - push-notification data that you send to your app
}

public void PushOpened(DevToDev.PushMessage pushMessage, DevToDev.ActionButton actionButton) {
     //pushMessage - DevToDev.PushMessage. Represents toast notification message
     //actionButton - DevToDev.ActionButton. Represents toast button that was clicked.
     //               Could be null if toast body was clicked
}

public void PushTokenFailed(string error) {
     //handle push-notifications error here
}

public void PushTokenReceived(string pushToken) {
     //pushToken - your push token
}

DevToDev.PushManager.PushReceived = PushReceived;
DevToDev.PushManager.PushOpened = PushOpened;
DevToDev.PushManager.PushTokenFailed = PushTokenFailed;
DevToDev.PushManager.PushTokenReceived = PushTokenReceived;

DevToDev.PushManager.PushNotificationsOptions = (DTDNotificationOptions.Alert | DTDNotificationOptions.Badge | DTDNotificationOptions.Sound | DTDNotificationOptions.Provisional); //Notification options for iOS, optional property
DevToDev.PushManager.PushNotificationsEnabled = true;

// FOR ANDROID ONLY! Optional. Using custom push-notification icons on Android.
// <summary> To set the custom icons to be shown in push-notification on the SDK part,
// use the following methods.
// Attention! Icons which set in the push-notification wizard
// have priority over the icons which set in these methods.</summary>
// <param name="iconName">Icon file from resources of your app
// (from Assets/Plugins/Android/res folder)</param>

//FOR ANDROID ONLY! To set the small icon:
DevToDev.PushManager.CustomSmallIcon = iconName;

//FOR ANDROID ONLY! To set the large icon:
DevToDev.PushManager.CustomLargeIcon = iconName;

Creating a new push-notification in devtodev interface

1. Open PUSH NOTIFICATIONS section and click on the "Add new campaign" button

2. Fill in the campaign name, select an app for delivery 3. Choose a user group to send a message. You can choose an existing segment or create a new one 4. Enter notification details 5. Schedule the delivery 6. That's it!
