Android

Android Push Notifications

Push Notifications on Android are sent with the help of the FCM service.

How to create a project in Firebase and integrate Firebase Services into your application, you can find in Firebase documentation.

Next, you need to specify the FCM Server key in the push notifications integration settings panel in the application settings section in devtodev service (App → Settings → Push notifications → Push notifications panel)

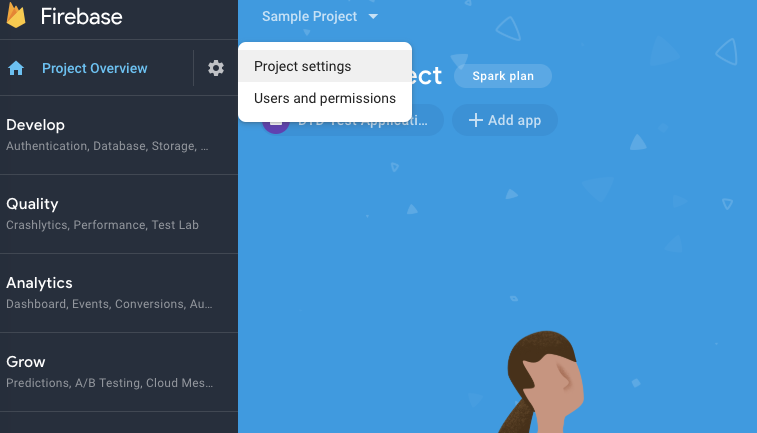

To get the FCM Server key, go to the Project Settings of your Android project in the Firebase Console and copy the Server key from the Cloud Messaging tab.

Messaging Module Integration

The Messaging module is available as an AAR (recommended) and JAR library. The library is available in the MavenCentral and GitHub repository.

1. If you use Gradle for the applications build, add mavenCentral() into gradle.build file of your application and specify the following relationship in dependencies block:

dependencies {
    implementation ‘androidx.preference:preference-ktx:1.1.1
    implementation 'com.android.installreferrer:installreferrer:2.2'
    implementation 'com.google.android.gms:play-services-base:17.6.0'
    implementation 'com.google.code.gson:gson:2.8.6'
    implementation 'com.google.firebase:firebase-core:19.0.0'
    implementation 'com.google.firebase:firebase-messaging:22.0.0'
    // if you use AAR (recommended) or JAR downloaded from GitHub, please add:
    implementation fileTree(dir: "libs", include: ["*.aar"])
    // or just add the dependency
    implementation 'com.devtodev:android-analytics:2.0.0'
    implementation 'com.devtodev:android-messaging:2.0.0'
}

2. To the app manifest add the following:

<application>
        <service
            android:name="com.devtodev.push.internal.logic.DTDFcmMessagingService"
            android:exported="false">
            <intent-filter>
                <action android:name="com.google.firebase.MESSAGING_EVENT"/>
            </intent-filter>
        </service>

        <receiver
            android:name="com.devtodev.push.internal.logic.PushClickReceiver"
            android:enabled="true"
            android:exported="true">
            <intent-filter>
                <action android:name="com.devtodev.android.push.CLICKED" />
            </intent-filter>
        </receiver>
  </application>

3. To add a user icon to your push notification and change its color, add the following strings to the manifest file code:

<meta-data
 android:name="com.devtodev.push.default_small_icon"
 android:resource="@drawable/ic_icon_name" />

<meta-data
 android:name="com.devtodev.push.default_small_icon_color"
 android:resource="@color/icon_color" />

To add a large user icon to your push notifications, add:

<meta-data
android:name="com.devtodev.push.default_large_icon"
android:resource="@mipmap/ic_large_icon_name"/>

Example:

<application
    <!-- Your tags -->
    <service
        android:name="com.devtodev.push.internal.logic.DTDFcmMessagingService">
        <intent-filter>
            <action android:name="com.google.firebase.MESSAGING_EVENT" />
        </intent-filter>
    </service>

    <receiver
        android:name="com.devtodev.push.internal.logic.PushClickReceiver"
        android:enabled="true"
        android:exported="true">
        <intent-filter>
            <action android:name="com.devtodev.android.push.CLICKED" />
        </intent-filter>
    </receiver>

    <meta-data
        android:name="com.devtodev.push.default_small_icon"
        android:resource="@drawable/ic_baseline" />

    <meta-data
        android:name="com.devtodev.push.default_small_icon_color"
        android:resource="@color/colorPrimary" />

    <meta-data
        android:name="com.devtodev.push.default_large_icon"
        android:resource="@mipmap/baseline_accessibility_black_18"/>
</application>

4. After the DTDAnalytics initializer, add the DTDMessaging initializer.

Example:

val analyticsConfiguration = DTDAnalyticsConfiguration()
analyticsConfiguration.logLevel = DTDLogLevel.Error
DTDAnalytics.initialize("progectKey",analyticsConfiguration,context)
DTDMessaging.initialize(context)

5. Subscribe a DTDPushListener to receive information about the DTDMessaging functioning.

Example:

DTDMessaging.setPushListener(object : DTDPushListener {
      override fun onPushServiceRegistrationSuccessful(deviceId: String) {
          //do something
      }
      override fun onPushServiceRegistrationFailed(error: String) {
          //do something
      }
      override fun onPushNotificationReceived(message: Map<String, String?>?) {
          //do something
      }
      override fun onPushNotificationOpened(pushMessage: DTDPushMessage, actionButton: DTDActionButton?) {
          //do something
      }
})

6. Call the DTDMessaging.startPushService() method to activate the Messaging module.

External interface of the DTDMessaging module

Object	Description
DTDMessaging	The main object for push notification initialization.
DTDMessaging.initialize(Context context)	The push notification initialization method.
DTDMessaging.startPushService()	The push notification activation method. It passes the isAllowed current state.
DTDMessaging.pushNotificationsAllowed = true or false	A property responsible for the activation/deactivation of push notifications. Functions as a getter (describes the current state) and a setter (sets the current state). When the state transitions, it sends a pt with isAllowed (true or false) status to the server. The isAllowed flag status is stored in the SDK.
DTDMessaging.setIntent(Intent intent)	A method of passing a user intent to the SDK using PushMessage.
Written in the manifest file <meta-data android:name="com.devtodev.push.default_small_icon" android:resource="@drawable/smallIcon" />	Sets a small custom user icon.
Written in the manifest file <meta-data android:name="com.devtodev.default_small_icon_color" android:resource="@color/colorPrimary" />	Sets a color of the small custom user icon.
Written in the manifest file <meta-data android:name="com.devtodev.push.default_large_icon" android:resource="@mipmap/largeIcon" />	Sets a large custom user icon.
DTDMessaging.getToken()	Returns a push notification registration token (firebaseToken).
DTDMessaging.processPushNotification(Context context, RemoteMessage remoteMessage)	Used to pass the push notification to the FirebaseMessagingService if it was implemented by the client but not by the SDK.
DTDMessaging.setPushListener(DTDPushListener pushListener)	(DTDPushListener pushListener) - sets a listener for push notification event trapping.

DTDPushListener Interface Methods

DTDPushListener Interface Methods	Description
onPushServiceRegistrationSuccessful(String deviceId)	Returns a push notification registration token (firebaseToken).
onPushServiceRegistrationFailed(String error)	Returns errors during push notification registration.
onPushNotificationReceived(Map<String, String> message)	Returns a directory with data for improving your push notifications.
onPushNotificationOpened(DTDPushMessage pushMessage, @Nullable DTDActionButton actionButton)	Returns pushMessage and actionButton if they were tapped.

A Class for Receiving Notification Data (DTDPushMessage).

Basic Class Properties

Property	Type	Description
getData()	Map<String, String>	Complete information sent with the use of a remote push notification.
systemId	Int	The notification ID used in the devtodev system.
getTitle(context:Context)	String?	Returns the selected message title or app name if the former is unavailable.
body	String?	The text body.
group	String?	A group of messages.
getSound(context: Context)	Uri?	Returns the storage path of an audio file.
getSoundName()	String?	The notification sound name.
tag	String?	The notification tag.
color	String?	The notification color.
bigPicture	String?	The notification banner if specified.
actionType	DTDActionType	The property that returns an enum’s DTDActionType value. Possible values: Url - an external link opening Share - content sharing Deeplink - an in-app link opening
actionString	String?	The property that returns an optional action ID.
getIcon(context: Context, userIcon: Int)	Int	The icon resource identifier specified by the user (if specified).
largeIcon	String?	The large notification icon name.
actions	List<DTDActionButton>	The list of action buttons used in the push notification.
isApiSource	Boolean	Specifies whether the push notification was sent using the devtodev API.

A Class for Handling the Notification Button Taps (DTDActionButton)

Property	Type	Description
Id	String?	The property that returns the tapped button ID.
actionString	String?	The property that returns the optional action ID.
actionType	DTDActionType	The property that returns an enum’s DTDActionType value. Possible values: App - a default value Url - an external link opening Share - content sharing Deeplink - an in-app link opening
icon	String?	The property that returns the button’s icon name.
isBackground	Boolean	The button-click app open mode.
text	String?	The property that returns the text of the tapped button.
